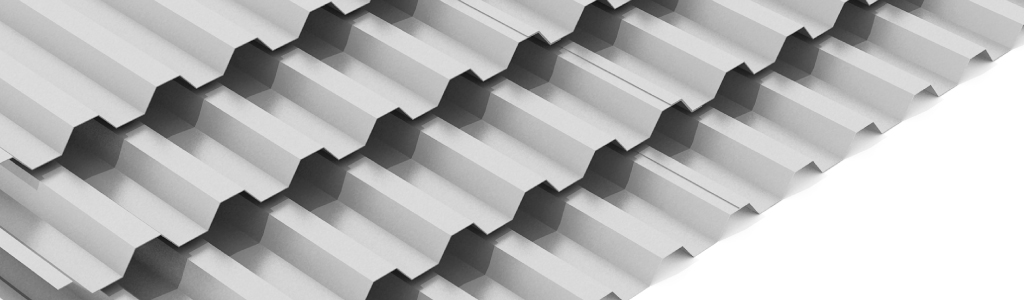

Kings Metal Mart Supplies galvanized corrugated sheet, which is not only high in strength but also lightweight, eco-friendly & durable. Galvanized corrugated sheets are in a linear corrugated pattern. The corrugations increase their strength in the direction which is perpendicular to them. Corrugated sheets are created using Roll forming process. The zinc -iron alloy layers formed during the process of galvanising create a protective coat around the steel and can be subjected to bending and forming without flaking of zinc, keeping moisture out and preventing corrosion. The softness in the corrugated sheets is achieved by annealing process in the galvanizing line. GC sheets come in a wide variety of thicknesses from 0.12 mm – 0.60 mm and widths (900 mm/ 1220 mm) to suit your project. We deals in GC sheets manufactured by Jindal India and Arcelor Mittal & Nippon Steel Ltd.
Material: As per ISI Specification IS:277-2003
| Weight per piece ( 3.0 Feet - 900 mm) | ||||||||
| Thickness | 6ft | 8ft | 10ft | 12ft | 14ft | 16ft | 18ft | 20ft |
| (mm) | 1829 | 2438 | 3048 | 3658 | 4267 | 4877 | 5486 | 6096 |
| 0.12 | 1.722918 | 2.296596 | 2.871216 | 3.445836 | 4.019514 | 4.594134 | 5.167812 | 5.742432 |
| 0.16 | 2.297224 | 3.062128 | 3.828288 | 4.594448 | 5.359352 | 6.125512 | 6.890416 | 7.656576 |
| 0.2 | 2.87153 | 3.82766 | 4.78536 | 5.74306 | 6.69919 | 7.65689 | 8.61302 | 9.57072 |
| 0.25 | 3.5894125 | 4.784575 | 5.9817 | 7.178825 | 8.3739875 | 9.5711125 | 10.766275 | 11.9634 |
| 0.3 | 4.307295 | 5.74149 | 7.17804 | 8.61459 | 10.048785 | 11.485335 | 12.91953 | 14.35608 |
| 0.35 | 5.0251775 | 6.698405 | 8.37438 | 10.050355 | 11.7235825 | 13.3995575 | 15.072785 | 16.74876 |
| 0.4 | 5.74306 | 7.65532 | 9.57072 | 11.48612 | 13.39838 | 15.31378 | 17.22604 | 19.14144 |
| 0.45 | 6.4609425 | 8.612235 | 10.76706 | 12.921885 | 15.0731775 | 17.2280025 | 19.379295 | 21.53412 |
| 0.5 | 7.178825 | 9.56915 | 11.9634 | 14.35765 | 16.747975 | 19.142225 | 21.53255 | 23.9268 |
| The weight mentioned is subject to tolerance of + - 10% | ||||||||
| Weight per piece ( 4.0 Feet - 1220 mm) | ||||||||
| Thickness | 6ft | 8ft | 10ft | 12ft | 14ft | 16ft | 18ft | 20ft |
| (mm) | 1829 | 2438 | 3048 | 3658 | 4267 | 4877 | 5486 | 6096 |
| 0.2 | 3.7904196 | 5.0525112 | 6.3166752 | 7.5808392 | 8.8429308 | 10.1070948 | 11.3691864 | 12.6333504 |
| 0.25 | 4.7380245 | 6.315639 | 7.895844 | 9.476049 | 11.0536635 | 12.6338685 | 14.211483 | 15.791688 |
| 0.3 | 5.6856294 | 7.5787668 | 9.4750128 | 11.3712588 | 13.2643962 | 15.1606422 | 17.0537796 | 18.9500256 |
| 0.35 | 6.6332343 | 8.8418946 | 11.0541816 | 13.2664686 | 15.4751289 | 17.6874159 | 19.8960762 | 22.1083632 |
| 0.4 | 7.5808392 | 10.1050224 | 12.6333504 | 15.1616784 | 17.6858616 | 20.2141896 | 22.7383728 | 25.2667008 |
| 0.45 | 8.5284441 | 11.3681502 | 14.2125192 | 17.0568882 | 19.8965943 | 22.7409633 | 25.5806694 | 28.4250384 |
| 0.5 | 9.476049 | 12.631278 | 15.791688 | 18.952098 | 22.107327 | 25.267737 | 28.422966 | 31.583376 |
| The weight mentioned is subject to tolerance of + - 10% | ||||||||
