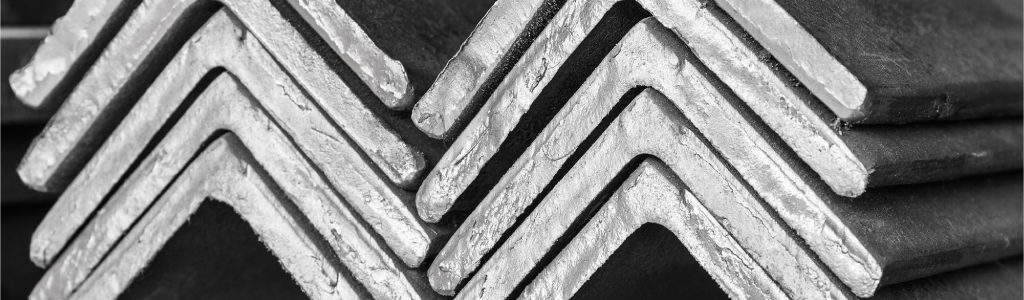

Kings Metal Mart supplies a wide range of Mild Steel Angles. MS Angles are basically of two types, equal angles & unequal angle, we offer a full range of equal angles as per standard specification IS:2062-2006. Mild Steel equal angles are L-shaped structural steel represented by dimension of sides & thickness. For e.g. 65x65x6 means, both sides of angles are equal i.e. 65 mm & thickness is 6mm. We deals in products of many reputed large integrated steel mills located in the country.
MS Angles are used in space frame towers, power plants, transmission line towers, electrical towers, industrial sheds, bus/truck bodies, general fabrication, and prefabricated shelters.
We offer MS Angles at best price. We provide customized sizes of Mild steel angles for projects or for bulk orders.
| DIMENSION & PROPERTIES AS PER ISI SPECIFICATION IS: 2062-2006 | |||||
| Size | Thickness | Sectional Area | Weight/Meter | Centre of Gravity | Moments of Inertia |
| A*B | t | a | w | Cxx=Cyy | Ixx=Iyy |
| (mm*mm) | mm | (cm2) | (kg) | (cm) | (cm4) |
| 25*25 | 3 4 5 |
1.41 1.84 2.25 |
1.10 1.40 1.80 |
0.71 0.75 0.79 |
0.80 1.00 1.20 |
| 30*30 | 3 4 5 |
1.73 2.26 2.77 |
1.40 1.80 2.20 |
0.83 0.87 0.92 |
1.40 1.80 2.10 |
| 35*35 | 3 4 5 6 |
2.03 2.66 3.27 3.86 |
1.60 2.10 2.60 3.00 |
0.95 1.00 1.04 1.08 |
2.30 2.90 3.50 4.10 |
| 40*40 | 3 4 5 6 |
2.34 3.07 3.78 4.47 |
1.80 2.40 3.00 3.50 |
1.08 1.12 1.16 1.20 |
3.40 4.50 5.40 6.30 |
| 45*45 | 3 4 5 6 |
2.64 3.47 4.28 5.07 |
2.10 2.70 3.40 4.00 |
1.02 1.25 1.29 1.33 |
5.00 6.50 7.90 9.20 |
| 50*50 | 3 4 5 6 |
2.95 3.88 4.79 5.68 |
2.30 3.00 3.80 4.50 |
1.32 1.37 1.41 1.45 |
6.90 9.10 11.00 12.90 |
| 65*65 | 5 6 8 10 |
6.25 7.44 9.76 12 |
4.90 5.80 7.70 9.40 |
1.77 1.81 1.89 1.97 |
24.70 29.10 37.40 45.00 |
