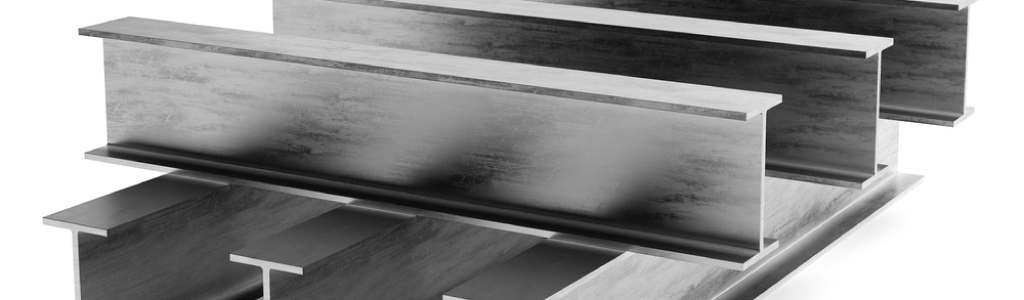

Kings Metal Mart supplies one of the widest range of beams. We at KMM stock beams
manufactured by JSPL, SAIL, RINL and various leading ISI product manufacturers. (MS)
Beams made up of high-quality raw materials add to the aesthetics of the construction
design. Beams are represented by dimensions of Web & Flange and they primarily carry
vertical gravitational forces.
There are primarily 3 types of beams
These steel beams are shaped like the capital letter ‘I’, just as the name implies. They are commonly used in industrial applications and have tapered flanges.
These are similar to I-beams but have a straight flange, they are also called as ‘wide flange’ beams and are most often used in residential construction.
Appearing like the capital letter ‘H’, they have longer flanges. H-beams have webs and flanges that have the same thickness in many cases.
| MILD STEEL BEAMS | |||||||
|---|---|---|---|---|---|---|---|
| DIMENSION & PROPERTIES AS PER ISI SPECFICATION IS:2062-2006 | |||||||
| Designation | Depth of Section | Width of Flange | Thickness of Web | Weight/Mtr | Sectional Area | Moduli of Section | |
| h | b | t | w | a | Zxx | Zyy | |
| (mm) | (mm) | (mm) | (kg) | (cm2) | (cm2) | (cm2) | |
| ISMB 100 | 100 | 60 | 4.5 | 11.5 | 14.6 | 51.5 | 10.9 |
| ISMB 125 | 125 | 70 | 5 | 13.2 | 16.6 | 71.2 | 11.7 |
| ISMB 150 | 150 | 75 | 5 | 15 | 19 | 95.7 | 13.1 |
| ISMB 175 | 175 | 85 | 5.8 | 19.5 | 24.6 | 145.4 | 18.9 |
| ISMB 200 | 200 | 100 | 5.7 | 25.4 | 32.3 | 223.5 | 30 |
| ISMB 250 | 250 | 125 | 6.9 | 37.3 | 47.6 | 410.5 | 53.5 |
| ISMB 300 | 300 | 140 | 7.7 | 46.1 | 58.6 | 599 | 69.5 |
| ISMB 350 | 350 | 140 | 8.1 | 52.4 | 66.7 | 778.9 | 76.8 |
| ISMB 400 | 400 | 140 | 8.9 | 61.5 | 78.5 | 1022.9 | 88.9 |
| ISMB 450 | 450 | 150 | 9.4 | 72.4 | 92.3 | 1350.7 | 111.2 |
| ISMB 500 | 500 | 180 | 10.2 | 86.9 | 110.7 | 1808.7 | 152.2 |
| ISMB 600 | 600 | 210 | 12 | 123 | 156.2 | 3060.4 | 252.5 |
